Tools & Plugins

Simple Tools for studio and stage.

Tools I built for myself that were too good not to share.

Explore the tools Back to dajaun.com

Hardware Insert

Outboard

Uses outboard hardware as an insert on a DAW track, time-aligned.

Audio Unit VST3 AAX / Pro Tools macOS Beta
Buy Purchase unlocks the download in your account. AU · VST3 · AAX (Pro Tools) · macOS.

Latency compensation

Measures the round-trip delay through your hardware and aligns the return automatically.

Latency trim

Manual alignment adjustment down to the single sample.

Send & return trim

Input and output gain to your hardware, in dB.

Phase & M/S

Polarity invert and Stereo, Mid/Side or Mono modes on the return.

Dry/wet mix

Blend against a delay-matched dry copy of the signal.

Metering & presets

Send and return level meters, and saveable named presets.

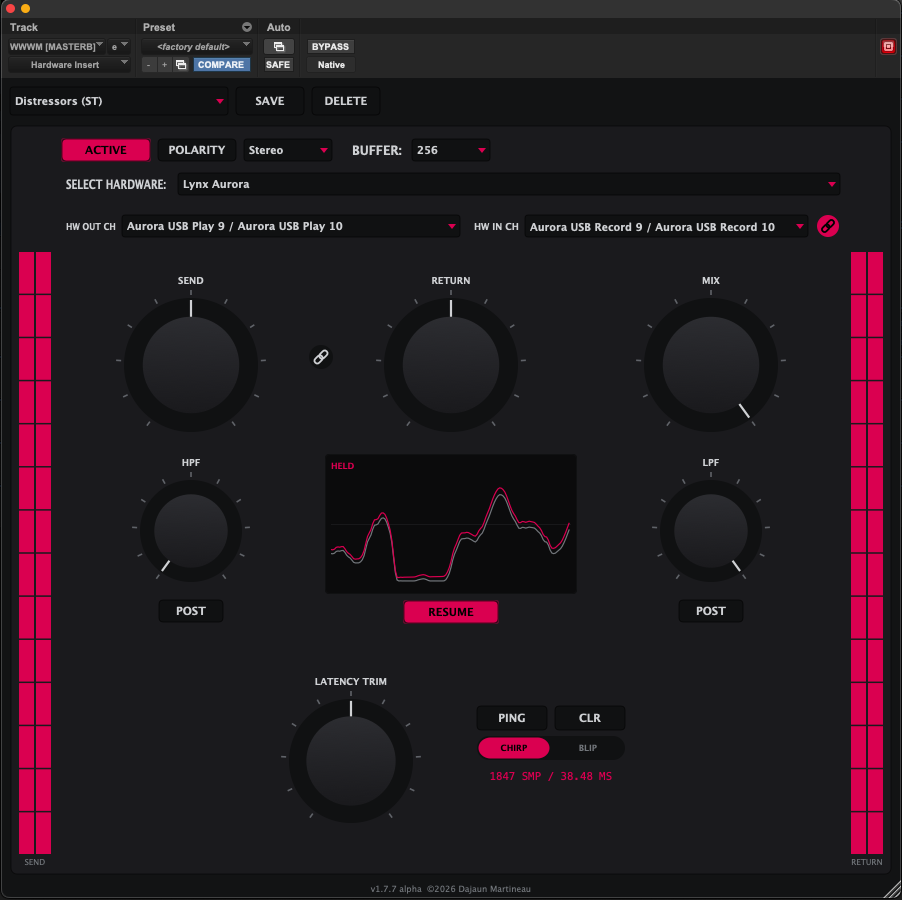

Hardware Insert plugin interface

Hardware Insert — Pro Tools (AAX)

LTC WAV Generator

Timecode

Generates SMPTE LTC (Linear Timecode) as WAV files.

Standalone macOS
Buy Purchase unlocks the download in your account. Standalone · macOS. Unsigned build: right-click the app and choose Open on first launch.

Frame rates

23.976, 24, 25, 30, and 29.97 drop-frame and non-drop.

Bit depth & sample rate

8, 16, 24 or 32-bit PCM at 44.1, 48, 88.2 or 96 kHz.

Start & length

Set the start timecode and file length as HH:MM:SS.

Batch output

Render multiple files at once by count, length and start-time interval.

Output level

Adjustable output level, default −10 dBFS.

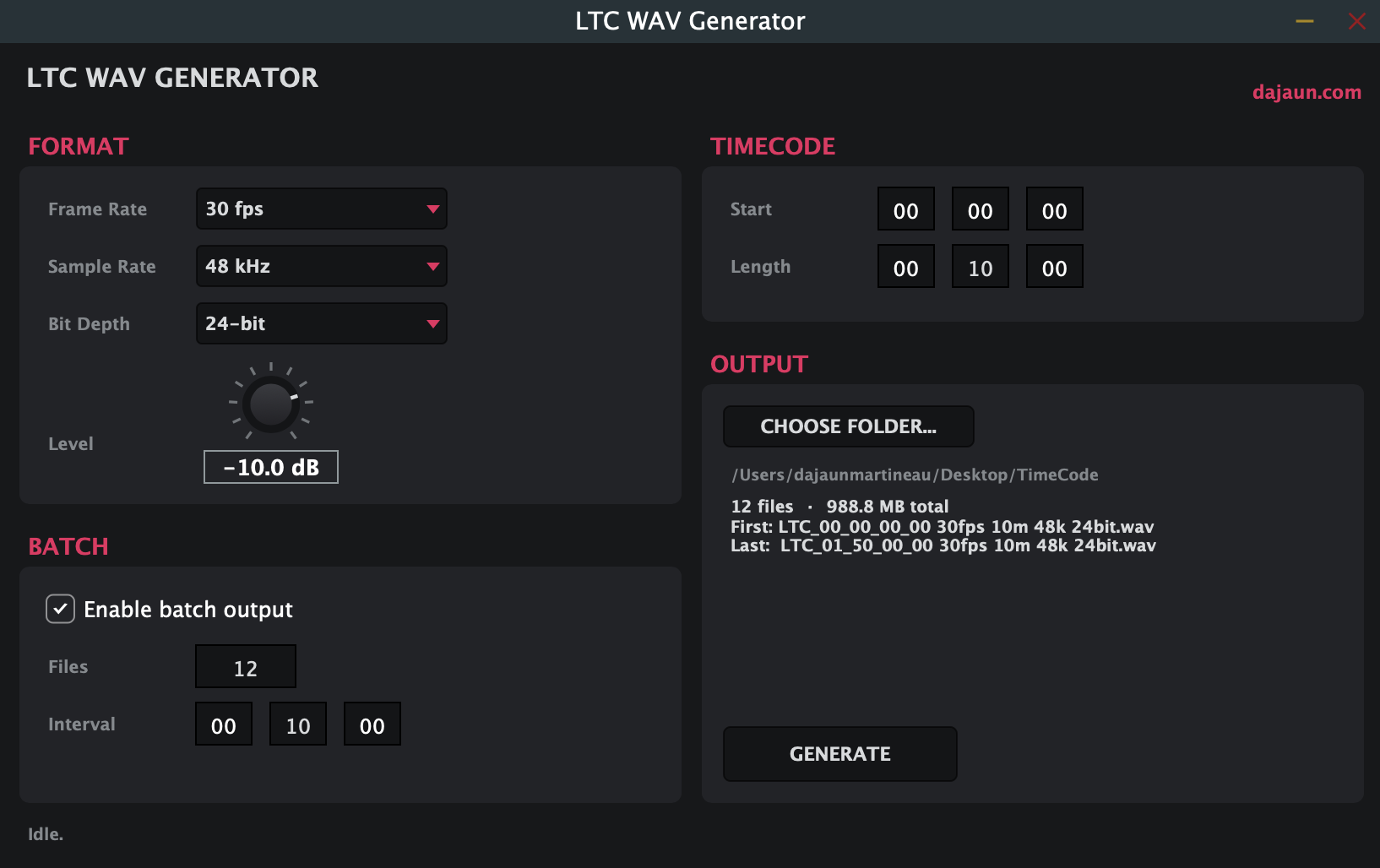

LTC WAV Generator plugin interface

LTC WAV Generator — Standalone

AbleSuite Pro

Max for Live

Edit any clip in Melodyne, Revoice Pro, VocAlign, RX or any editor — without leaving Ableton. It comes back on the same track, in the same place.

Max for Live Ableton Live 11 / 12 macOS Arrangement view

Before you buy — please read

This has only been tested on Melodyne 5, Revoice Pro 5.1.32 and 4.4.4.1, and VocAlign 6.1.32 Standard. I am working on testing more systems, but if you don’t specifically own one of those, please don’t buy yet — wait for it to be supported.

This is still really new software and I’ll be updating it as I can. Please be understanding: I’m not a big software company, I’m just one guy making some tools in between mixing records. If you’re unsure, please don’t buy — I can’t issue refunds.

Please watch this video before purchasing

Buy Purchase unlocks the download in your account. macOS · Max for Live.

Melodyne over ARA

Note-by-note tuning right inside Ableton — live and non-destructive.

Revoice Pro or VocAlign

One alignment slot, two engines — pick whichever you own in the gear pane and it stays picked. Revoice Pro 4 and 5 both work: AbleSuite Pro reads the version you have installed and drives it accordingly, so there is nothing to set. The guide, dub and process controls live in a floating window that stays on top of Live.

VocAlign runs inside the device

Ableton has no ARA, so AbleSuite Pro hosts VocAlign itself — no separate application to open, nothing to locate. Works with VocAlign 6 (Standard or Ultra) and the older Ultra and Pro. VocAlign Project ships no ARA build, so it can’t be hosted.

Hear the alignment before you print it

Capturing a dub runs the alignment in Revoice Pro right then, so it’s sitting there waiting. Add warp markers, retime by hand, then press process — what you hear is what lands in Live.

RX & any editor

Hand any clip to iZotope RX, WaveLab, or any editor that saves a WAV — and back.

Nothing is destroyed

Your original stays safe on a take lane; the edit lands in the same spot.

Key-mappable

Map every button to a key and work without touching the mouse.

It tells you when something is missing

If a slot reports an editor as not installed, the gear pane writes a Diagnostics report showing every place AbleSuite Pro looked — so you can see what is actually missing instead of guessing.

What you need

macOS, and Ableton Live 11 or 12 with Max for Live — placing edits back needs Live 12.0.5 or newer. Works on clips in the Arrangement view.

Tempo maps: one limitation

AbleSuite Pro currently describes your session to the editor as a single tempo and time signature. On a set that changes tempo, the editor’s grid won’t line up — it shows most in Melodyne, which draws one. Your audio is safe: capture, edit and placement stay sample-accurate. Sets at one fixed tempo are unaffected, and full tempo-map support is being researched.

Bring your own editors

No third-party licences are included — you must already own Melodyne, Revoice Pro, VocAlign, iZotope RX, etc. for this to work. Activate them first: an editor that hasn’t been activated can stop on its own licensing window, which looks like AbleSuite Pro hanging.

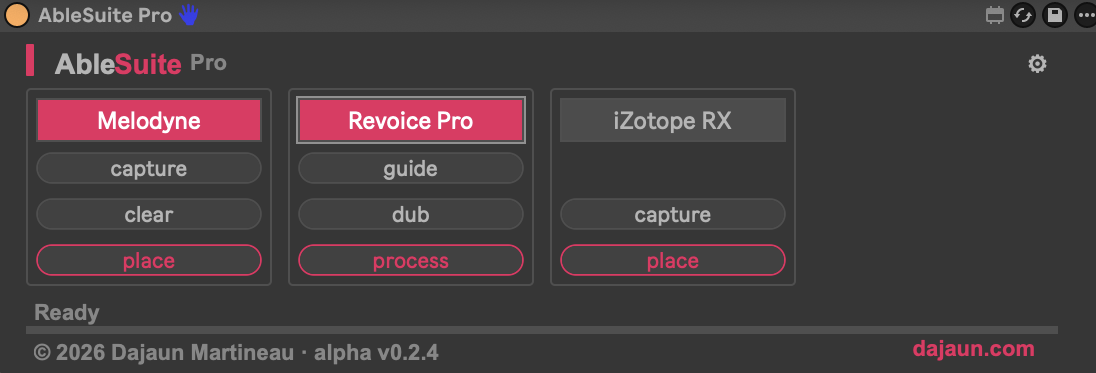

AbleSuite Pro — the Max for Live device

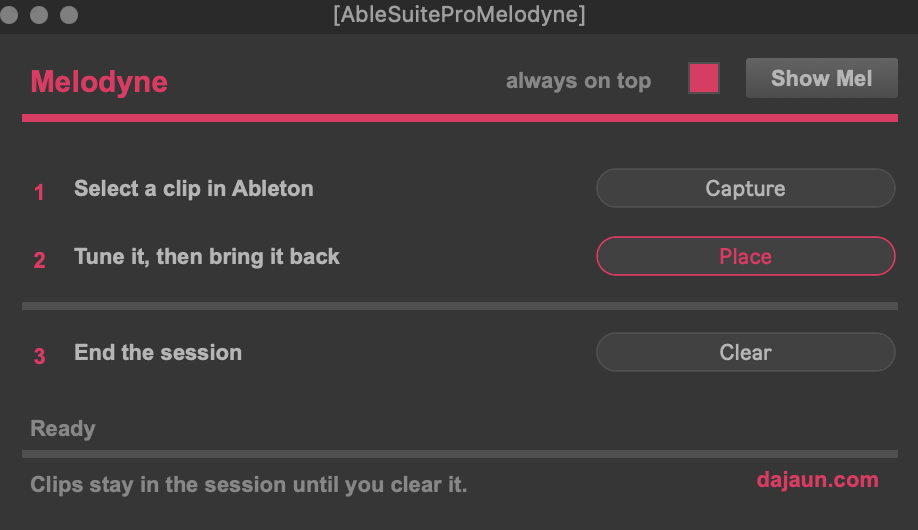

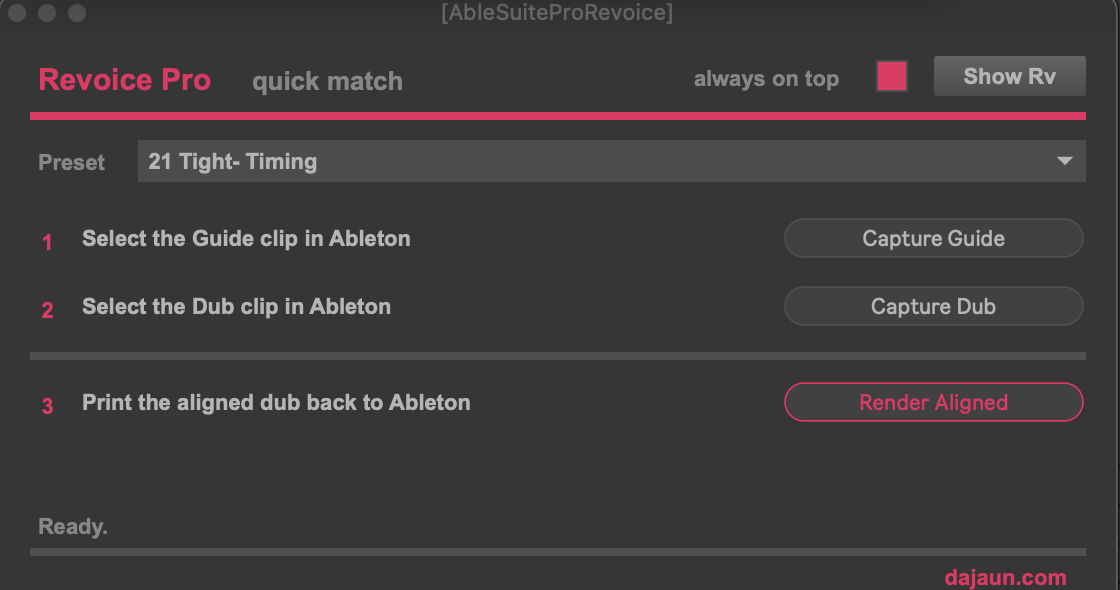

AbleSuite Pro — Melodyne window AbleSuite Pro — Revoice Pro window

AbleSuite Pro — the device, and its Melodyne & Revoice Pro windows

Chord Chart

Max for Live

Writes chords into Live — triads, 7ths, sus and borrowed — named and colour-coded to the key.

Max for Live Ableton Live 11 / 12 macOS Arrangement view
Buy Purchase unlocks the download in your account. macOS · Max for Live.

Diatonic in any key

Pick a root and Major/Minor; the seven buttons relabel and recolour to that key's chords and degrees.

Full chord palette

Open the window for the whole set — triads, sus2, sus4, 7ths and borrowed chords, all in your key.

Arrangement or Session

Drop chords at the Arrangement playhead, or write them into a selected Session clip slot.

Build progressions fast

In Arrangement, each chord advances the insert point by one clip length — click I–V–vi–IV and it lands in a row.

Clip length

1/4, 1/2, whole, 2 or 4 bars — note values are fixed, so they stay signature-independent.

Colour themes

Five palettes: Pink Purple, Autumn, Sunset, Ochre Blue and Terracotta Teal.

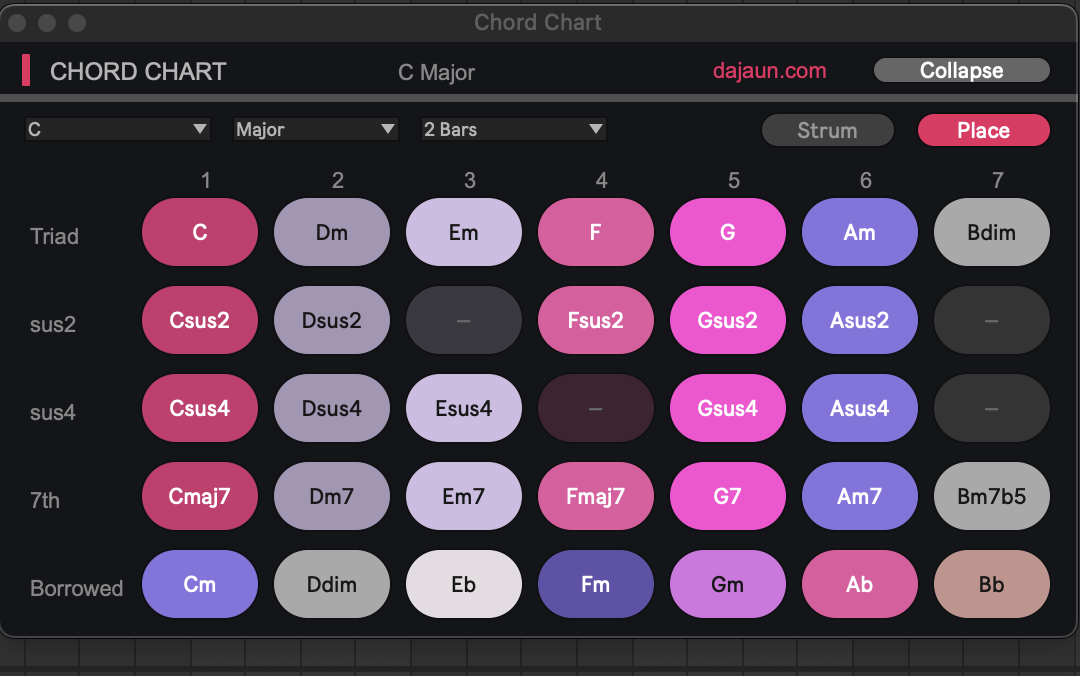

Chord Chart — the expanded chord palette

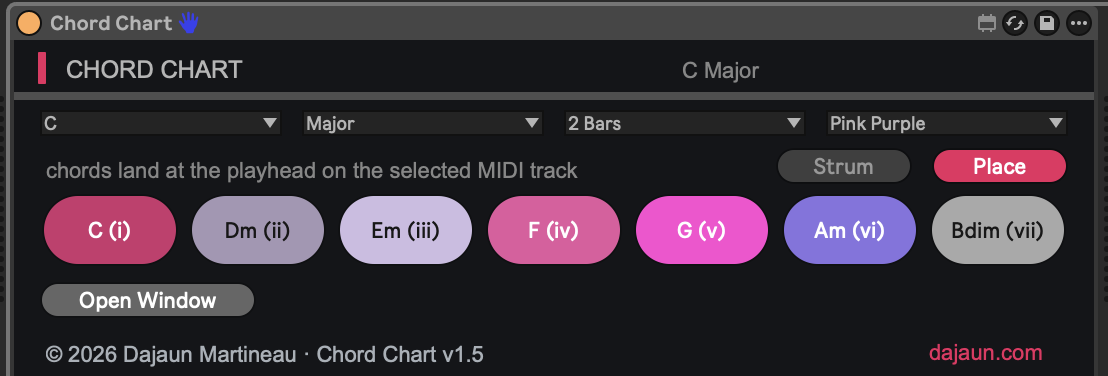

Chord Chart — the Max for Live device

Chord Chart — the expanded palette, and the device
